Custom processing: Brand: seyfer model: RBK-6000

Measurement range: 0--100ppm/0--1000ppm/0--100%LEL measurement object: hydrogen sulfide gas measurement accuracy: / - 5%f.s

Size: 370mm (L) * 305mm (W) * 90mm (H) weight: less than 4.5kg power supply: AC220V 10%

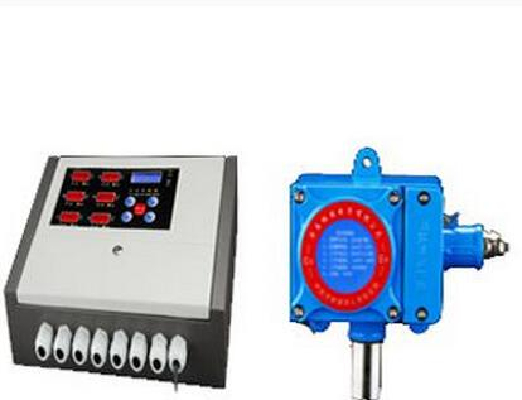

Detailed introduction of hydrogen sulfide volatilization alarm

Hydrogen sulfide volatilization of hydrogen sulfide leakage detector alarm Ji'nan safero Instrument Co., Ltd. specializing in the production of manufacturers (TEL:0531-68658013 13021732250 contact: Manager Zhu) product features:

RBK-6000 using high speed CPU processor, can quickly and accurately handle the system task, to ensure the reliability of the system.

Local monitoring and remote monitoring can be realized by computer, and the running state data of probe device can be permanently stored.

4 programmable relay, passive normally open, normally closed contact, contact capacity 240V5A

LCD LCD screen, real-time display of the concentration of the probe device, the state.

Hybrid configuration of combustible and toxic gas detector.

Modular structure design, easy system maintenance.

Using 485 communication protocol, high reliability.

Electric power supply conversion module.

Optional accessories

Repeater module

Linkage control module

Actuator

Technical parameter:

External dimensions: 370mm (L) * 305mm (W) * 90mm (H)

Matching with RBT-6000 gas probe device

LCD LCD screen display: ppm/%LEL

Operating voltage: AC220V 10%

Use temperature: -20 degrees Celsius to 60

The use of humidity: less than 95%RH

Alarm system: sound and light alarm

Alarm volume: 75dB

Transmission distance: 2000m

Weight: less than 4.5kg

Hydrogen sulfide leak detector

Hydrogen sulfide volatilization alarm
