Custom processing: Brand: seyfer model: ET-SGA-F

Measurement range: Custom Size: 100 cell types: Custom

Measurement accuracy: 0.5 power supply voltage: x D E [a I] I B T I 4 uses: 2

Specifications: 100

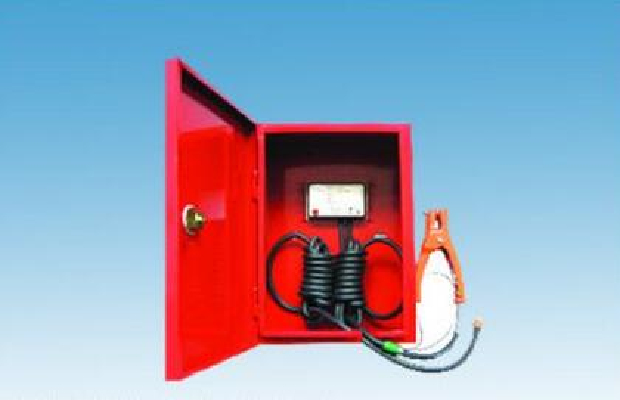

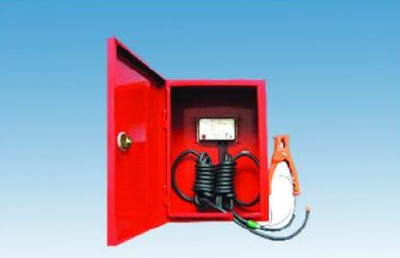

Explosion proof fixed static grounding alarm for tank car

Fixed type explosion-proof Ji'nan safero instrument limited company by tanker (Tel: 13021732250 contact: Manager Zhu)

Static earthing alarm explosion-proof electrostatic grounding monitor, grounding clamp, spiral cable. Static grounding alarm is the core equipment of the system, there are automatically shrink rubber cable or spiral cable can be selected in two ways. Static earthing alarm adopts the high quality chip, micro electronic circuit detection circuit and continuous connection equipment grounding terminal circuit resistance, static earthing alarm, the grounding clip connection body, grounding cable, grounding cables and grounding pile, static earthing alarm device connected to earth and formation potential the electrostatic, into the earth, static earthing alarm equipment can make the electrostatic grounding circuit resistance to meet safety standards prescribed by the state.

Performance characteristics of electrostatic grounding alarm:

It adopts integrated circuit performance reliable, stable and reliable performance and anti electrostatic alarm

The ability to respond quickly, when one side contact clamp thimble, immediate alarm reaction

The ground loop resistance value exceeds a predetermined value (default value 10) when the automatic alarm and control linkage

The linkage control, two groups of switch contacts send electric control pump and computer quantitative loading apparatus

The intrinsic safety of electrostatic grounding monitoring circuit

The automatic monitoring, ensure the continuity of electrostatic grounding

It provides output interface with the computer network use

The switch operation, 24 hours of duty, low power design, energy saving

The alarm in power or fault condition, does not affect the electrostatic discharge

The silicon Aluminum Alloy shell, the surface electrostatic spraying

The thimble clamp with tungsten carbide or alloy material, high hardness, excellent conductivity, and strong ability to get rid of rust paint

It adopts automatic contraction rubber cable or spiral cable works

Main technical parameters of electrostatic grounding alarm:

The working voltage: AC220V 10% 50Hz

The total power: 10W

The monitoring of ground loop resistance: 0~100 ohm (can be preset according to user requirements, precision 0.5)

The intrinsically safe loop output voltage: DC12V

The alarm sound output: < 90dB (buzzer)

The response time is less than 0.1s

The control of contact capacity: AC250V, 5A

The installation: Wall

Static electricity grounding alarm explosion-proof mark:

The Exdia II BT6

Static grounding alarm system:

The temperature of -42 DEG C to 50 C

The relative humidity is less than or equal to 95%RH (25 C)

The atmospheric pressure: 80~110Kpa

Scope of application of electrostatic ground alarm:

The petroleum and chemical plant all kinds of tank truck, tanker train and other portable tanks

The other static grounding tank or container

Static grounding alarm, you are welcome to call to discuss the purchase of suitable for your products, electrostatic grounding alarm complete, good quality, is your choice! You are welcome to call the static electricity grounding alarm service hot line! Anti explosion fixed static grounding alarm device for oil tank car of static grounding alarm instrument
